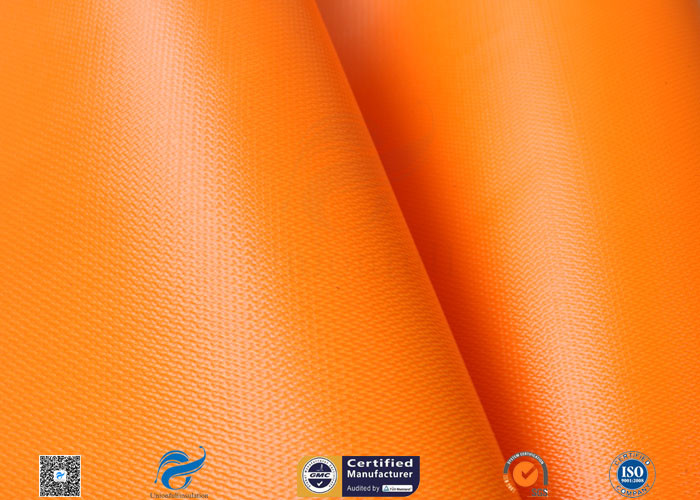

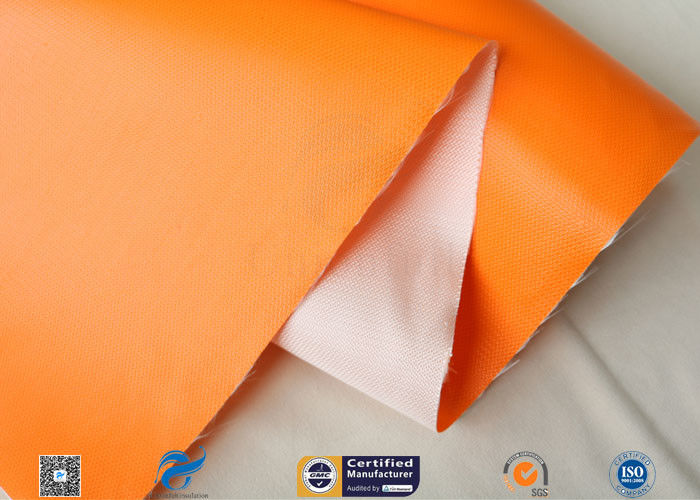

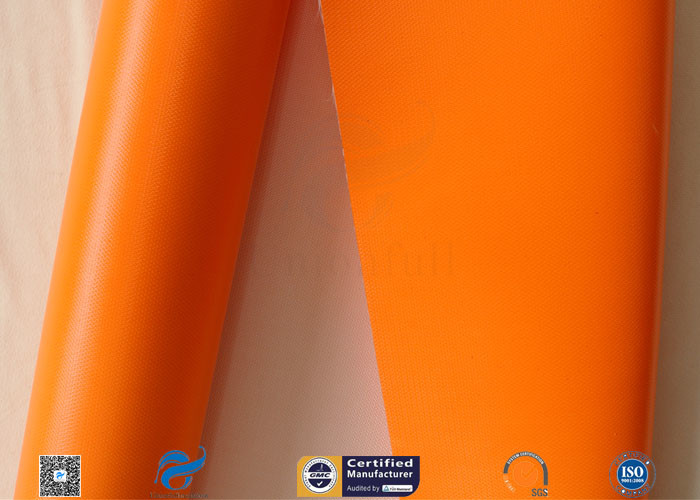

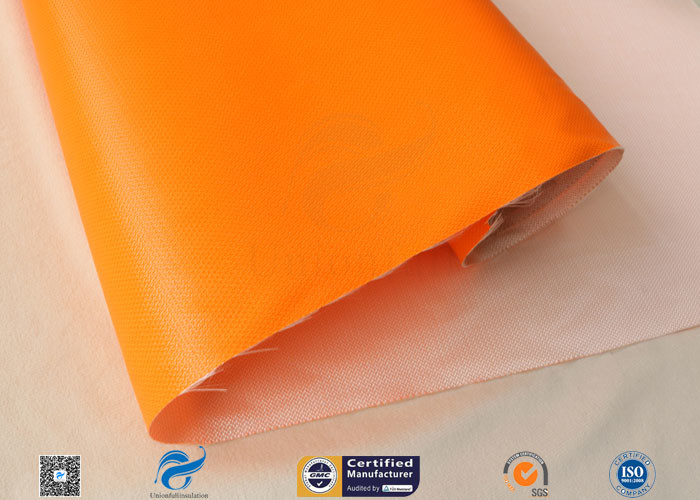

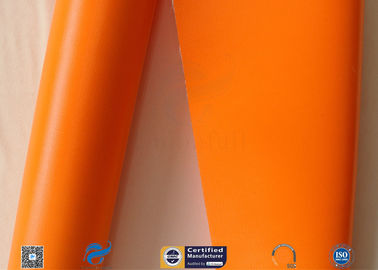

470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth

470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth
470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8732S40
Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50m / roll with poly bag, 20 rolls one pallet
Delivery Time: 15 Working Days After Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Basic Fiberglass: 430g Cloth Coating: Silicone, 40g/m2
Thickness: 0.45mm Mass Per Unit Area: 470g/m2
Common Width: 1000mm Application: Fabric Expansion Joint, Fire Blanket
Type: E-glass Weave: Satin
Highlight:

thermal insulation blankets

,

thermal insulation jackets

470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth


G37 1/0 0.7Z fiberglass yarns are woven in a fabric which is weighed at 430g/m2. Silicone coated fiberglass fabric is a 430g basic cloth - glass fiber fabric coated with 40g/m2 orange silicone on its single side. Total weight of this silicone coated fiberglass fabric is 470g/m2. The basic fabric can be able to used below 550℃. But the orange silicone coating can resist temperature 260℃.

Silicone coated fiber glass fabric is an abrasion resistant material. Its basic - fiberglass cloth owns stable physical/chemical properties. It is anti chemical and fire resistant. And based on the electrical insulation of silicone coating, the silicone coated fabric is widely used for fire blankets, fabric expansion joints, fabric air ducting and removable thermal insulation blanket.



Specification Of JT8430SO-S40-100:

Item Silicone Coated Fiberglass Fabric
Material 100% Fiber Glass
Weave Satin
Density 20 Ends/CM, 11 Ends/CM
Mass Per Unit 470g/m2
Thickness 0.45mm
Common Width 100cm
Temperature

Silicone Coating ≤ 260℃

Cloth ≤ 550℃


Features:


  • No heat shrink, dimension stablity
  • Abrasion resistance
  • High strength, tear resistance
  • Electrical insulation
  • Coating temperature from -50℃ to 260℃


Application:


  1. Freeze/heat removable thermal insulation blanket
  2. Fire blanket & fire curtains
  3. Cable, pipeline, pump insulation covers
  4. Fire protective products
  5. Fabric expansion joint
  6. Flexible air duct

470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 0470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth 1
