Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPSE-8732D40 |
Minimum Order Quantity: | 500 Meters |
Price: | $2.85-3.40/ Square Meter |
Packaging Details: | 50 meters per roll with poly bag |
Delivery Time: | 15 Working Days After Receiving Payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 50000 square meters per day |
Base Cloth: | 3732 430g/m2 Fiberglass Fabric | Coating: | Grey Silicone, 40/40 |
---|---|---|---|
Total Thickness: | 0.5mm | Weight: | 510g/m2 |
Width: | 127cm | Feature: | Fireproof, High Strength, Electric Insulation |
Weave: | Satin Weave | Keyword: | Silicone Coated Fiberglass Fabric |
Highlight: | silicone coated glass cloth,silicone coated glass fabric |
0.5mm 510g Grey Silicone Coated Fiberglass Fabric For Expansion Joint
3732 430g/m2 fiberglass fabric is a very common used fabric because of its suitable weight and thickness. When coat with grey silicone on both sides, the coated fiberglass fabric is 510g/m2 and 0.5mm. Fiberglass is a light-weight material which is fire resistant, abrasion resistant, chemical resistant, waterproof and anti UV. Silicone coating performs especially great on electric insulation so it is also used to produce removable thermal insualtion which is for pump, valve and power generators.
The fiberglass cloth can resist 550℃ continuously. Silicone coating can be used below 260℃. Base on its special coating properties and fabric features, main application of silicone coated fiber glass cloth are welding blanket/curtains, gasketing, fabric expansion joints, shrink tunnel curtains and heat insulation covers.
Model No. | Thread Count | Yarn Type | Thickness | Weight | Width |
3732 |
20 Ends/CM 11 Ends/CM |
G37 1/0 0.7Z G37 1/0 0.7Z |
0.4mm | 430g/m2 | 0.9m-4.2m |
Item | Silicone Coated Fiberglass Fabric |
Material | E-glass Glass Fiber Yarn |
Weave | Satin Weave |
Warp Count | 20 Ends/CM |
Weft Count | 11 Ends/CM |
Weight | 510GSM |
Thickness | 0.5mm |
Width | 127cm |
Servise Temperature | Coating below 260℃ |
Features:
Application:

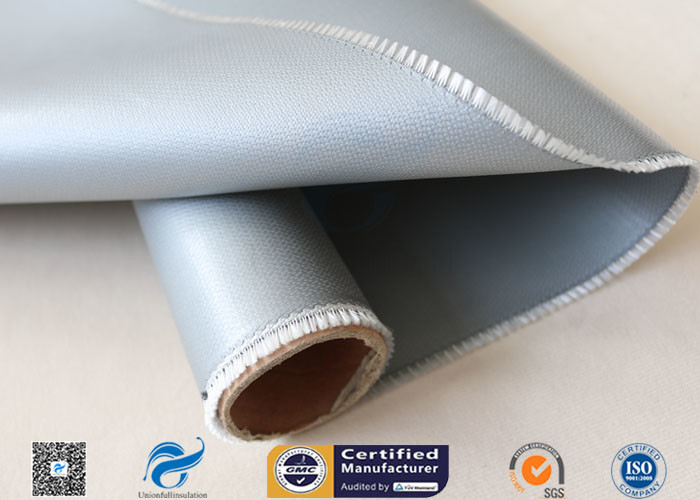

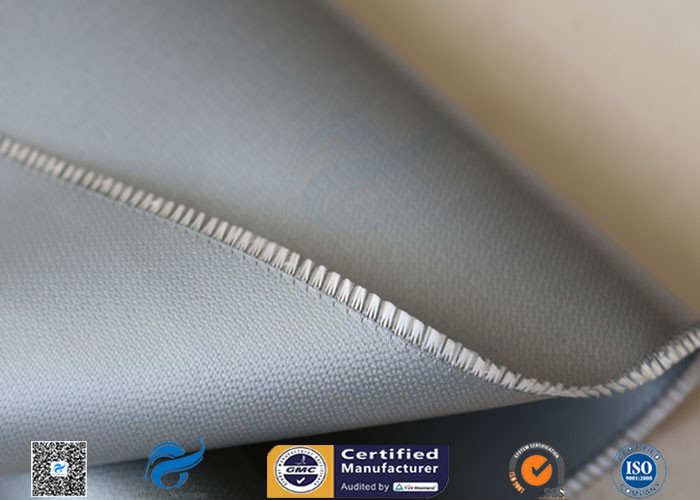

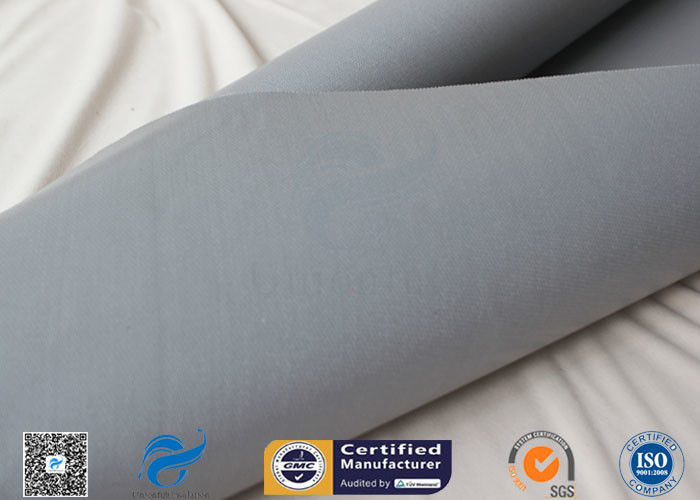

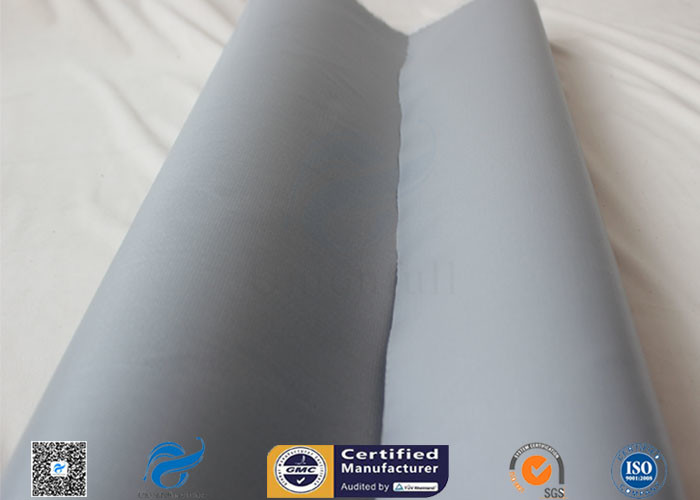

Picture:
