3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength

3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength
3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D80
Minimum Order Quantity: 500 Meters
Price: $2.85-3.40/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Base Cloth: 3732 430g/m2 Fiberglass Fabric Coating: Grey Silicone, 40/40
Total Thickness: 0.5mm Weight: 430g/m2+40g/m2+40g/m2
Width: 127cm Feature: Fireproof, High Strength, Electric Insulation
Weave: Satin Weave Keyword: Silicone Coated Glass Fiber Fabric
Highlight:

silicone coated glass cloth

,

silicone coated glass fabric

Fire Blanket 3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric
UPSE-8732D80 is a 3732 430g/m2 fiberglass fabric coated with grey silicone on 80g/m2 each side. The base cloth can resist 550℃ continuously. Silicone coating can be used below 260℃.

Fiberglass heat insulating fabric is a light material which is fireproof, ultra-modern design, superior Abrasion resistant, resistant to moisture, sunlight, supremely strong. Silicone coating performs good on electric insulation so it is always used as a material of removable fireproof jacket for pump, valve and generators. Common weave types of fiberglass fabric are plain, twill and satin weave. This silicone coated fiberglass fabric is satin weave.

Base on its special coating properties, major application of silicone coated glass fibre cloth are welding blanket and curtains, expansion joints, high temperature insulation, heat shield and containment, removable insulation cover, food handling operations, shrink tunnel curtains, gasketing and release sheet/separator material.


Yarn type is E-glass G37 1/0 0.7Z.
Total weight is 430g/m2+40g/m2 per side.
Common widths we produce are 100cm, 127cm, 155cm.

3732 Base Cloth Data Sheet

Model No.Thread CountYarn TypeThicknessWeightWidth
3732

20 Ends/CM

11 Ends/CM

G37 1/0 0.7Z

G37 1/0 0.7Z

0.4mm430g/m20.9m-4.2m




Specification

ItemSilicone Coated Fiberglass Fabric
MaterialE-glass Glass Fiber Yarn
WeaveSatin Weave
Warp Count20 Ends/CM
Weft Count11 Ends/CM
Weight510GSM
Thickness0.5mm
Width127cm
Servise TemperatureBelow 260℃


Features


  • Excellent non-stick properties
  • Chemical Resistance
  • Excellent release properties
  • High strength
  • Tear resistance
  • High dielectric strength
  • Working temperature range from -50℃ to +260℃


Application

  1. Used as a welding blanket, foundry splash protection
  2. For Conveyor belt, fabric duct and expansion joints
  3. Electrical insulation, chemical corrosion resistance, packing materials
  4. Used in other fields: aerospace, marine, chemical industry, power plant, automotive, construction, piping and sealing

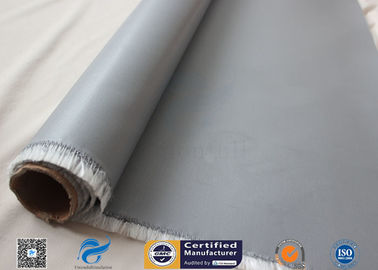

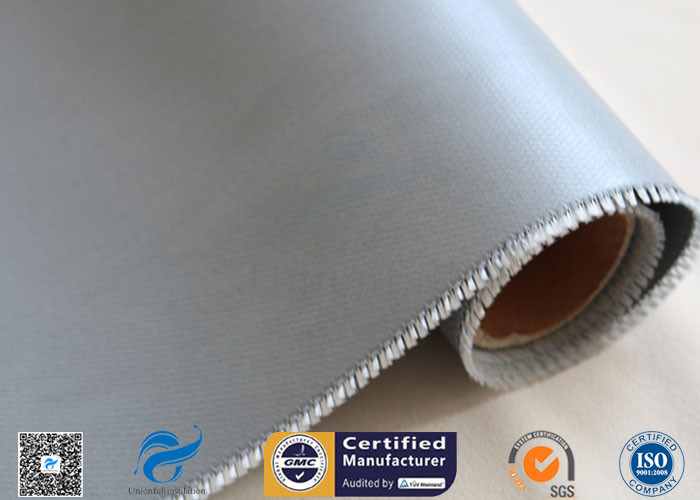

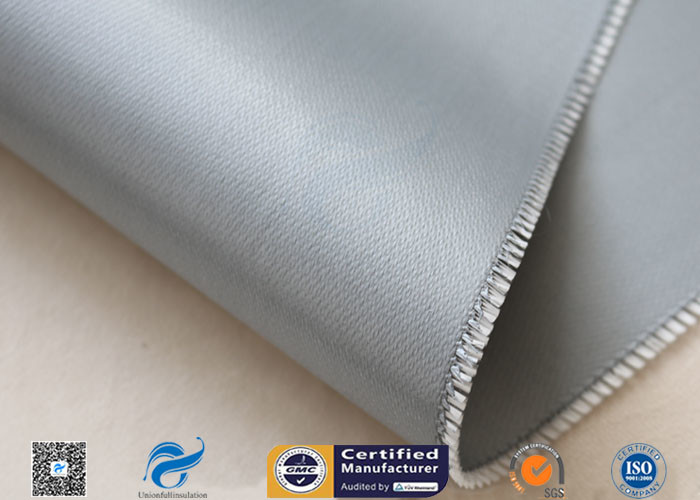

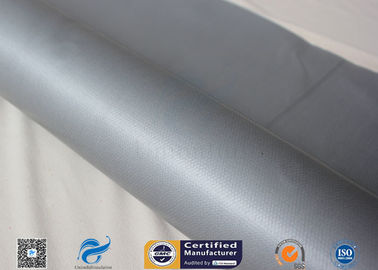

Picture:

3732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 03732 590GSM 0.5MM Silicone Coated Fiberglass Fabric Fire Blanket High Strength 1

About Fiber Glass

Fiberglass cloth is different in two grades: S glass and E-glass.
E-glass: E-glass is the more common used glass fiber and is used when strength and high electrical resistivity are required. S-glass is higher in strength than E-glass fabric and has better properties at elevated temperatures. E-glass has high strength relative to carbon and aramid and relatively low fiber modulus.

S-glass: S-glass is approximately 30% higher in strength. It's also more expensive and has better properties at elevated temperatures. The "S" designation, a registered trademark of Owens Corning, stands for strength.

Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
