Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPSE-8628D150 |
Minimum Order Quantity: | 500 Meters |
Price: | $0.85--$1.35/Sqaure Meter |
Packaging Details: | One roll with poly bag, then carton |
Delivery Time: | 18 Working Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 20000 square meters per day |
Features: | Waterproof, Heat Resistant | Base Cloth: | 200g/m2 |
---|---|---|---|
Coating: | Grey PVC, 50g/m2 Per Side | Total Weight: | 300g/m2 |
Thickness: | 0.3mm | Width: | 127cm |
Type: | E-glass Glass Fiber | Keywords: | Pvc Coated Glass Fiber Cloth, Fabric |
Highlight: | pvc woven fabric,heat resistant fiberglass |
0.3mm PVC Coated Fiberglass Fabric For Fire Blanket Fire Resistant Curtain
This PVC coated glass fiber fabric is made of base cloth: fireproof fiber glass fabric. Then coat waterproof/fireproof PVC glue on. Fiber glass fabric is a material with high quality of fireproof performance. Coating with PVC glue can make the surface of fiberglass fabric to be more smooth and with high waterproof performance.
PVC coated fiber glass cloth is an high strength fabric which has a lot of good features. Such as heat resistant(260 degrees), waterproof, mildew-proof, cold-proof and corrosion-proof;
Chemical resistant; Smooth surface; UV resistant; Easy clean; Good capability of heat maintaining.
PVC coated fiberglass fabric has already covered many domains in sports field before, such as in surfboards, boats and yachts, etc. Now this coated material is widely used in car canopy/ train/ship cover, open yard cover, industrial and in other fields.
Specification:
Composition | 100% Glass Fibers |
Coating | PVC Coating(50/50) |
Weight | 200g/m2+50g/m2+50g/m2 |
Width | 127cm |
MOQ | No MOQ for common stock color |
Serve Temperature |
Base Cloth: below 550℃ Coating: below 260℃ |

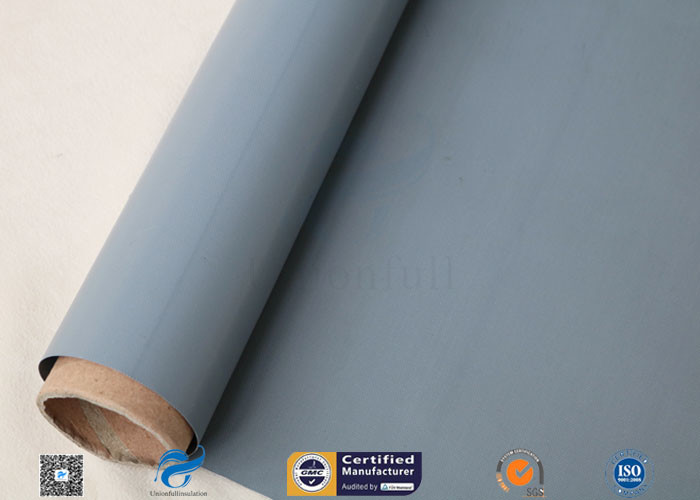

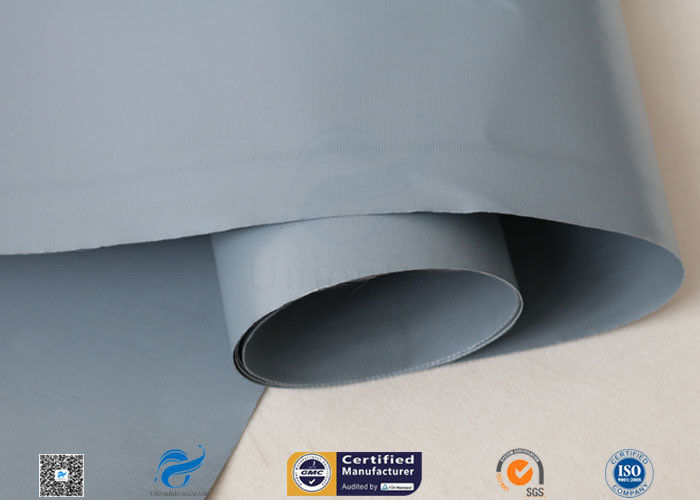

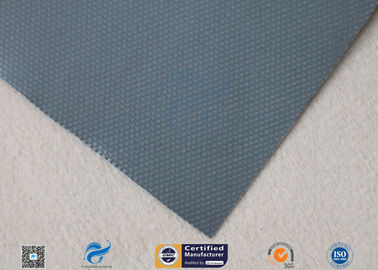

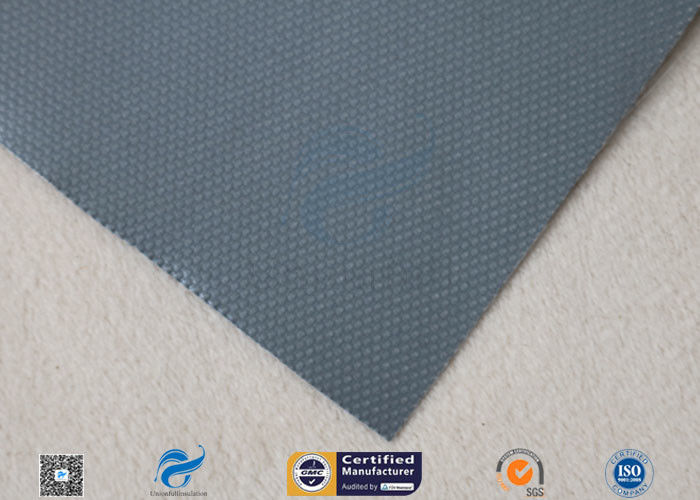

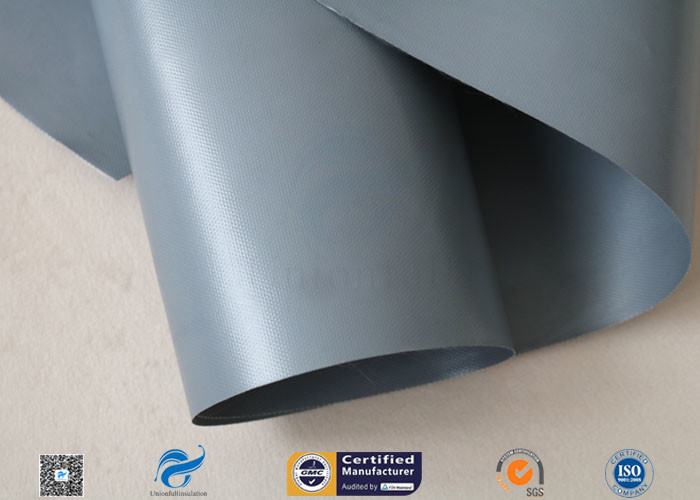

Picture:
Application:
lightweight fiberglass cloth, fiberglass composite, heat resistant fiberglass
About Base Cloth 7628:
7628 e-glass fiberglass cloth is one of the electronic cloth series, 7628 is also with the serial number of electronic cloth. However, because of its light weight(200gsm) and diversified production combinations, this kind of cloth is not only used for electrical application, but very suitable in many other industrial use as well.
Item |
Fabric Count(cm) |
Yarn | Thickness | Weight |
7628 | 17.3/13 |
G75 1/0 0.7Z G75 1/0 0.7Z |
0.2mm | 200g/m2 |
More Application
