Thermal Insulation Jacket Industrial Valve Exhaust Insulation Cover 260℃

Basic Information

Place of Origin:	Zhejiang, China
Brand Name:	Unionfull
Certification:	ISO9001:2008, SGS;TUV
Model Number:	JT8430TIJ-30-DN80

Minimum Order Quantity:	50 pieces
Price:	$20--$45 one piece
Packaging Details:	1 piece per poly bag, 10pcs per woven bag
Delivery Time:	10--15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	300000 Square Meters Per Day

Get Best Price Contact Now

Application:	Gate Valve DN80, 3 Inches	Materials:	Fiber Glass Cloth+Needle Mat
Open With:	Fire Retardant Velcro	Weight:	4KG
Thickness:	30mm	Temperature:	Coating Below 260 ℃, Inside Below 800 ℃
Feature:	Fireproof, Thermal Insulation, Oil Acid Resistance	Keywords:	Thermal Insulation Cover, Exhaust Jacket Blanket
Highlight:	thermal insulation jackets , pipe insulation jacket

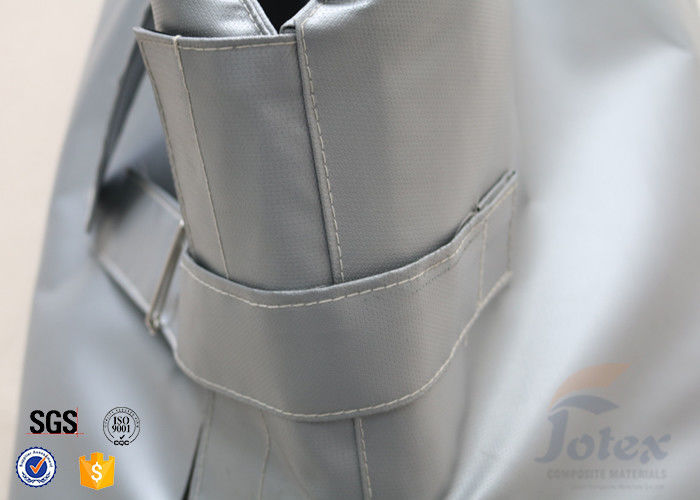

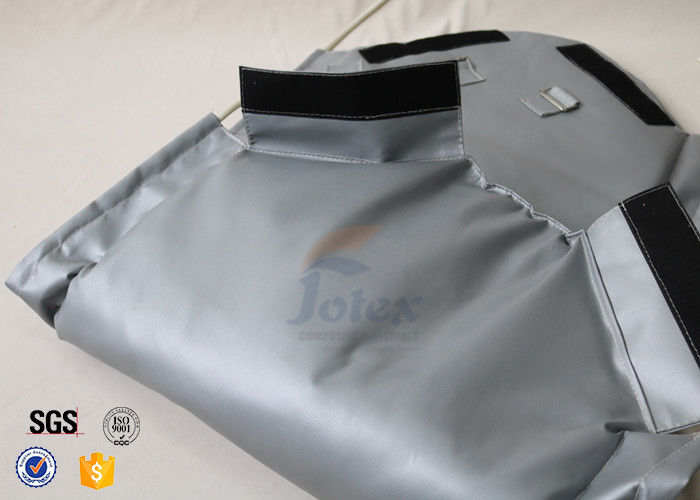

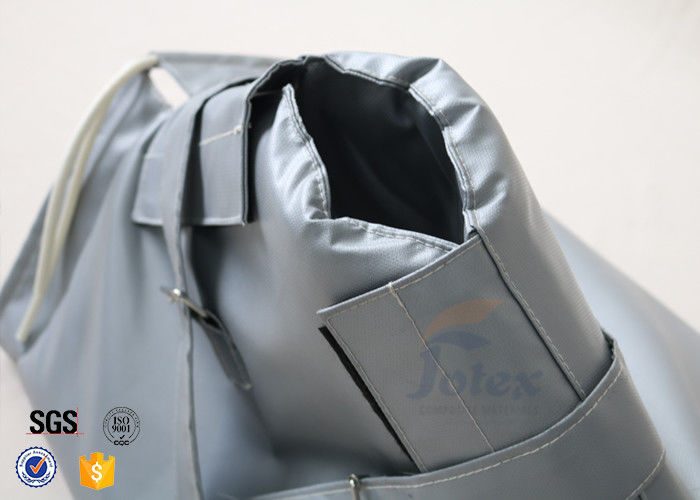

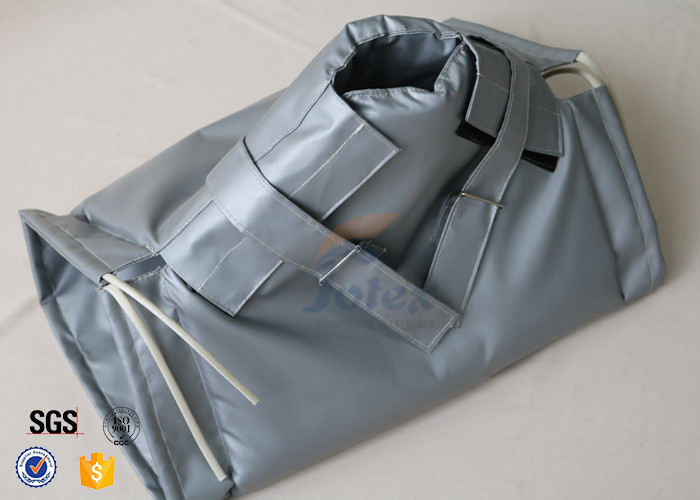

Thermal Insulation Jacket Industrial Valve Exhaust Insulation Cover 260℃

Materials of this thermal insulation jacket are silicone coated fiberglass fabric and fiberglass needle mat. Materials are soft and enviromental. Exhaust blanket made from this material is easy to remove. Fiberglass materials perform good on fireproofing. Working temperature of fiberglass cloth can be 550℃, but coating is 260℃. Inside materials fiberglass mat can be 800℃.

1.Fire retardant;heat thermal
2.coated with silicone or polyurethane or aluminum
2.Can be easily sewn.
3.Easy to fabricate

Inside materials fiberglass needled mat is a mechanically bonded e-glass glass fiber insulation blanket of uniform density. It is manufactured from a well-controlled assortment of long textile glass fibers to ensure uniform mechanical bonding with no additional binders. The resulting product has excellent insulation efficiency for extended exposure at high temperatures. Also good for sound insulation and filtration applications.

Fiberglass Chemical Composition Weight
SiO2	Al2O3	CaO	MgO	B2O3	Impurity
					R2O	Fe2O3	Other
54.1±0.5	14.6±0.4	16.6±0.3	4.6±0.3	8.8±0.5	0.8	0.5	Allowance

Our thermal insulation blankets (jackets) of valve are designed and engineered to serve as the insulation solution for any size, shape and variety of valve. Please contact to talk about your custom valve insulation needs.

Specification:

Item Name	Removable Thermal Insulation Jacket
Products Code	JT8430TIJ-30-DN80
Application	Gate Valve DN80/3 inches
Weight	4KG/Piece
Standard Thickness	30mm
Energy Saving Rate	25%-40% In General
Outside Materials	Name	E-glass Silicone Coated Fiberglass Fabric
	Temperature	Cloth:≤550℃
		Coating:≤260℃
Inside Materials	Name	150kg/m3 E-glass Fiberglass Needle Mat
	Temperature	≤800℃
Other Materials	Fire Retardant Velcro, Kevlar Thread, Buckles

Heat Insulation:

IR Test Exampls: When temperature in gate valve 3inch went up to 300℃, IR showed the surface temperature of jacket is 32℃.

Application:

Barrel heater on injection molding machine, extruder etc.
Molds and dies
Flange, Pipe, Valve insulation
Exhaust Elbow
Heater exchanger
Exhaust pipe of engine
Any other applications needed to reduce heat loss
Electrical insulating materials

Data Sheet - Fiberglass Needle Mat:

Total weight	100-300kg/m3
Thickness	3mm~30 mm
Color	White
Fire resistance	Yes
Working temperature	-50℃ to +800℃
Coating	Available
Standard widths	1000mm, 1200mm, 2400mm(MAX)
