1.3mm Heavy Weight Insulation Fiberglass Fabric 96% SiO2 Content Silica Cloth

1.3mm Heavy Weight Insulation Fiberglass Fabric 96% SiO2 Content Silica Cloth

High silica cloth is a special fiberglass fabric which contains over 96% SiO2. With excellent heat resistance, it can work for 10 minutes at 1450 ° C, and keep well at 1600 ° C for 15 seconds, the melting point is close to 1700 ° C, long period service at 900 ° C. Due to the outstanding capability of high strength, easy processing, heat insulation and ablation resistance, the product is primarily used in firproof work such as welding and burning operations.

It is an ideal replacement for asbestos and useful for thermal and electrical insulation in severe application environments.

The fabrics have two kinds of weave. It can be treated in different ways in order to meet specific purposes. Main products: fireproofing curtain, fireproof door, heat-proof mat, fire blanket and fireproof suit

Typically, silica cloth can be produced at width of 92cm,100cm and 105cm, roll length at 25 or 50meters. UPH-8120-92 is a heavy weight fiberglass cloth weaved by 12HS, and weight at 1250g/m2, thickness is 1.3mm, so the fabric is smooth, shiny and soft.

Product specification:

Properties:

1.Low thermal conductivity

2.Non-asbestos, without pollution

3.Good electrical insulation

4.Shiny, soft but tough

5.Highly heat resistant

6.96% silicone dioxide

7.Soft point up to 1700℃, long period service at 900℃

8.Good process performance

Applications:
1.Dust collecting and filtration equipment
2.molten metal splash protection
3.heat and flame shielding,stress relief,insulation
4.hose and cable protection and emergency fire blankets

5.Protective material for welding

6.Aircraft firewall insulation

7.Removable insulation jacket

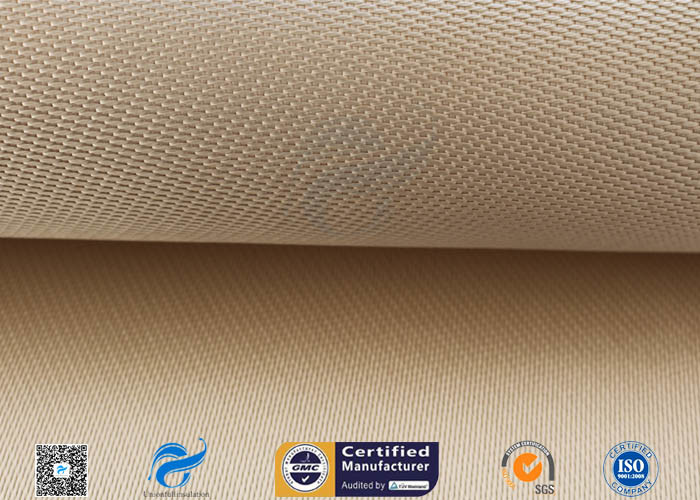

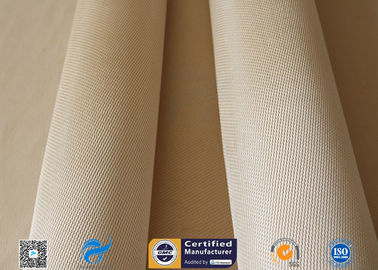

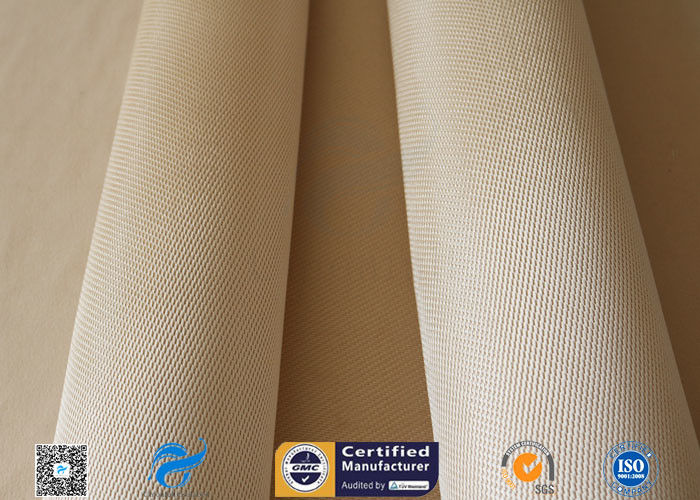

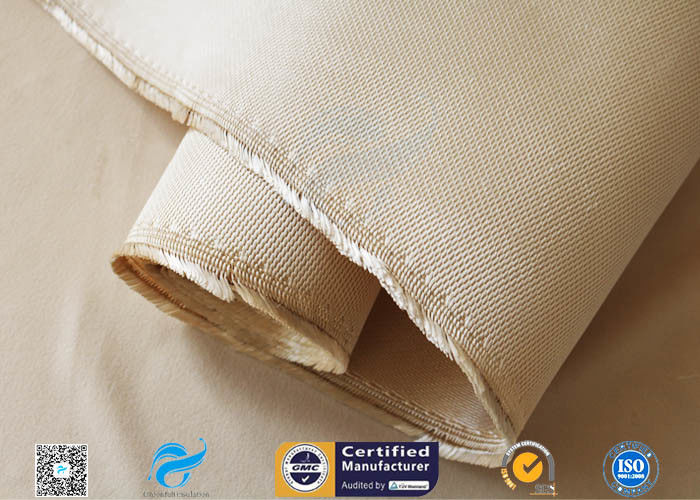

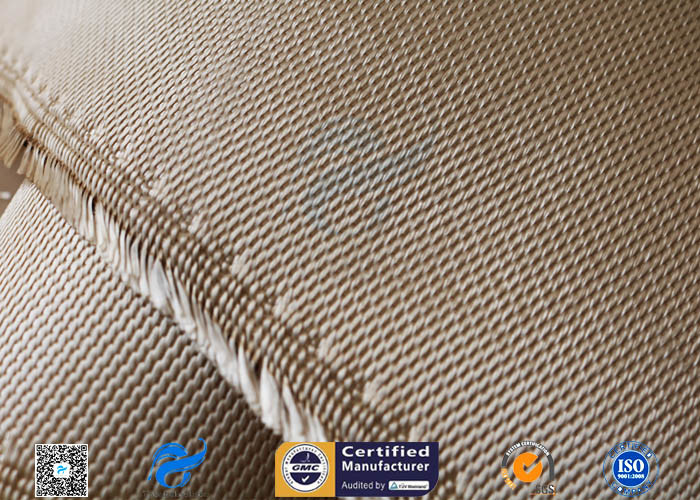

Product picture:
