Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | UPSE-8784S100 |
Minimum Order Quantity: | 500mters |
Price: | $5.5~$6.8/ m2 |
Packaging Details: | One roll in woven bag |
Delivery Time: | 10 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30000m2 Per Day |
Material: | Fiberglass Fabric | Surface Treatment: | Silicone Coating |
---|---|---|---|
Total Weight: | 950g/m2 | Width: | 1550mm |
Length: | 50m Per Roll | Thickness: | 0.85mm |
Yarn Type: | E-glass | Weave: | Satin |
Highlight: | silicone coated glass cloth,silicone coated fiberglass cloth |
Description:
Silicone coated fiberglass cloths from Unionfull offers excellent resistance to extreme outdoor environment, being able to withstand of temperature from -70°C to +260°C. It also present outstanding properties at flame retardant, weatherproof, chemical resistance to acids and lye, high strength.
Unionfull provides one-side or both-sides silicone coated fiberglass fabrics with varieties of coating weight, colors and widths for difference applications.
Specification:
Item No. | UPSE-8784S100 | |
Coating | Silicone rubber 1 side | |
Type | E-glass | |
Weight | 950 ± 50 g/m2 | 28 ± 1.4 oz/yd2 |
Thickness | 0.85 ± 0.01 mm | 0.033 ±0.0004 inch |
Color | Gray | |
Temp. Resistance |
Glass fabric up to 550ºC (1000ºF) Silicone rubber coating up to 250ºC (500ºF)
|
Main Specification:
Item No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/y2 | mm | inch | |||
UPSE-8628S40 | 260 | 7.65 | 0.2 | 0.008 | Gray/Red | 1 side |
UPSE-8732D80 | 510 | 15 | 0.45 | 0.018 | Gray/Red | 2 sides |
UPSE-8732D160 | 590 | 17.4 | 0.45 | 0.018 | Gray/Red | 2 sides |
UPSE-8784S100 | 950 | 28 | 0.85 | 0.033 | Gray/Red | 1 side |
UPSE-8784D200 | 1050 | 31 | 0.88 | 0.035 | Gray/Red | 2 side |
Advantage
1.Non adhesive
2.High Temp. resistance from -70C to +260ºC
3.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.
4.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.
5.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time
6.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.
Main Application:
-Insulation jackets for pipe lines, valve
-Fiberglass reinforced material, sound absorption in architecture
-Fabric duct-work connector
-Fire curtains/Welding blankets
-Conveyor belts for industrial processes
-Other fire control systems

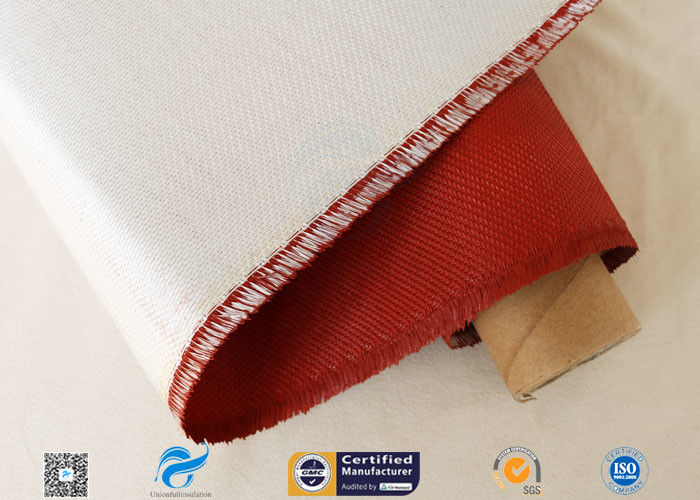

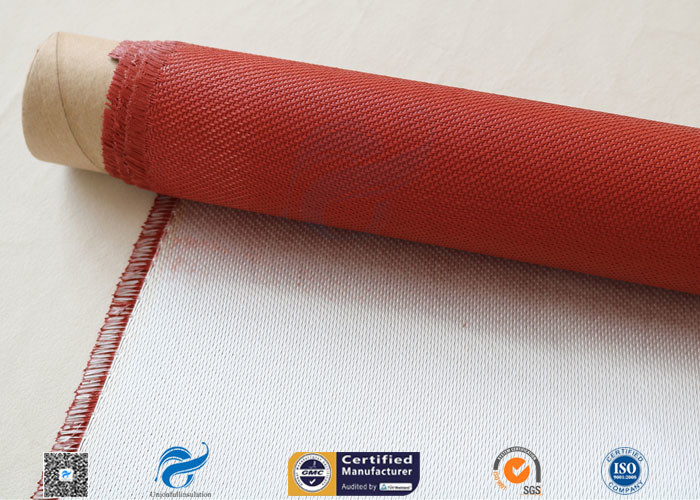

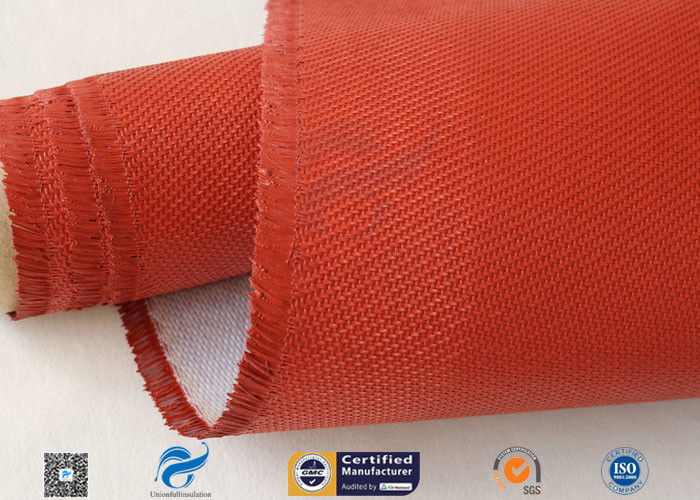

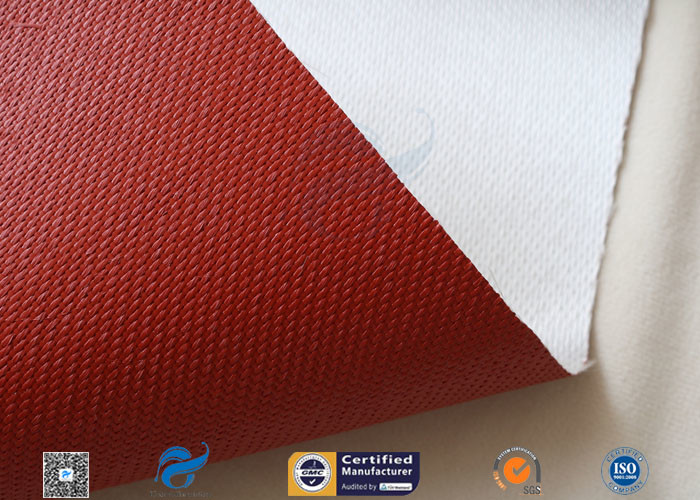

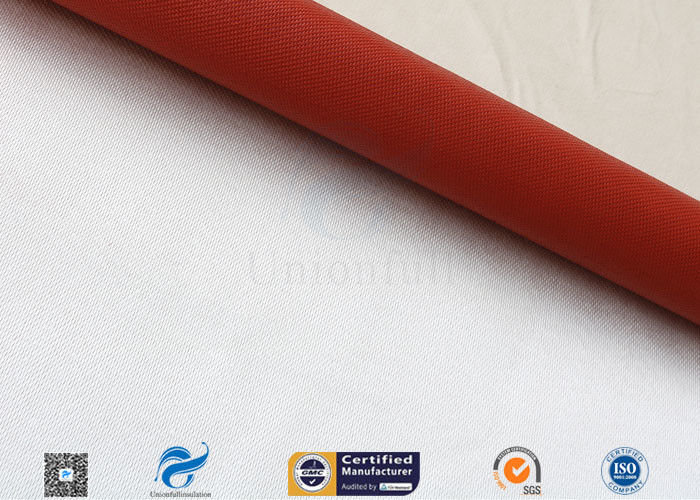

Pictures:
About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
