Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric

Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric
Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UNP8IJG-A-25
Minimum Order Quantity: 30pcs
Price: $20--$45 one piece
Packaging Details: 10pcs in woven bag
Delivery Time: One weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2,600pcs per day
Get Best Price Contact Now
Material: Silicone Coated Fiberglass Fabric, Mat Weight: 3KG
Normal Thickness: 25mm Color: Grey
Work Temperature: 260℃ Feature: Eco-friendly, Asbestos Free
Highlight:

thermal insulation jackets

,

valve insulation jackets

Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric


Romovable thermal insulation cover is designed to cover the devices such as pumps, valces, pipelines and actuators as heat resistant protection. Materials of insulation blanket is 0.4mm or 0.8mm glass fiber fabric coated with grey silicone compound on single side. With silicone coating, the surface of insulation cover is oil&moisture resistant, corrosion resistant, chemical resistant and non irritating.



Outside material - silicone coated fabric can withstand continuously heat below 260℃. E-glass needle mat is able to withstand continuous heat below 800℃.


Data Sheet



Item Name Removable Thermal Insulation Mattress, Jacket
Fit Actuator
Weight 3KG
Normal Thickness 25mm
Size Customized
Outside Material Type Silicone Coated Fiberglass Cloth

Use Temperature

 Fiberglass Cloth＜550℃
Silicone Coating＜260℃
Inside Material Type Fiberglass Needle Mat
Use Temperature ＜800℃ Continuously


IR Test


IR Test result of removable insulation jacket showed that when inside temperature of devices goes up to 300℃ continuously, the surface temperature of this jacket is below 40℃.


Properties



  • Removable design, easy to install and remove
  • Low heat loss
  • Low surface temperature
  • Chemical agents, oil resistant
  • Moisture resistant


Images

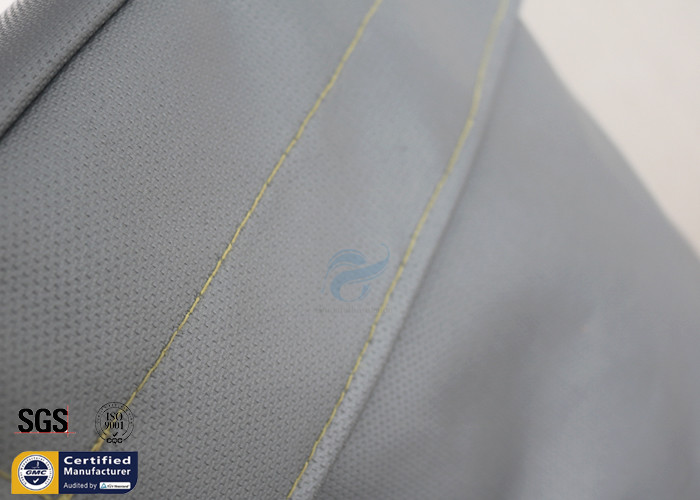

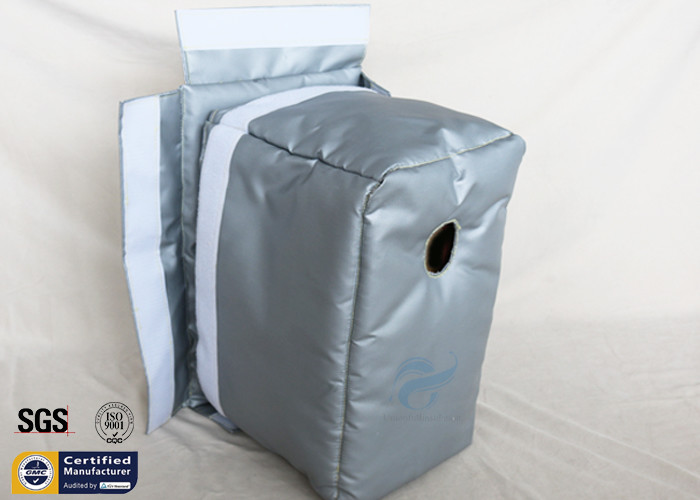

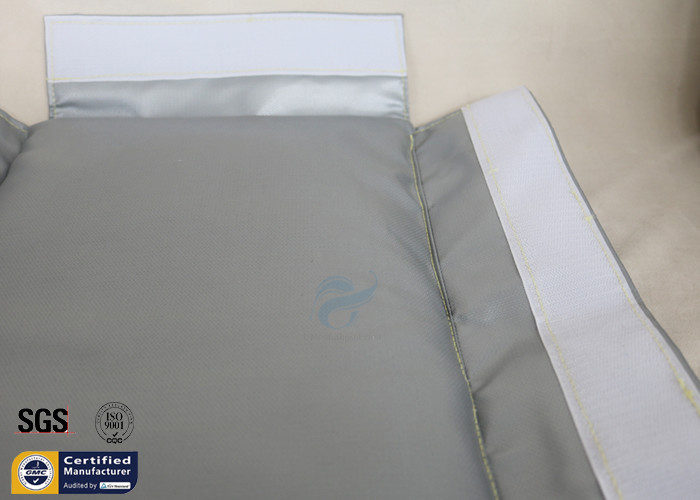

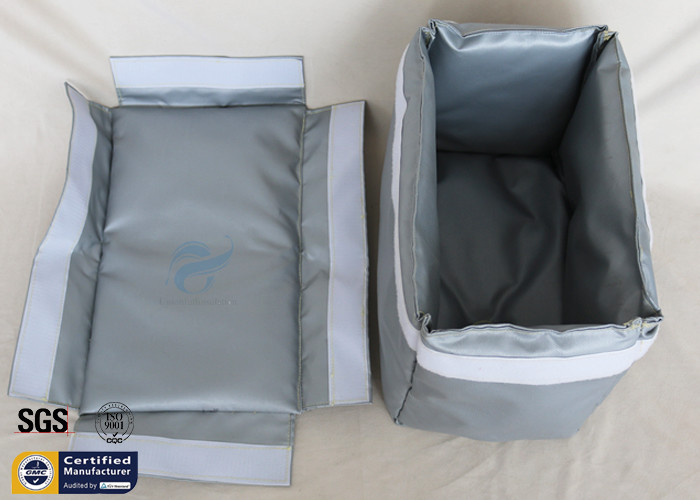

Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric 0



Removable Thermal Insulation Jacket For Actuator Grey Silicone Fiberglass Fabric 1
