PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System

PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System
PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS
Model Number: UNP8ADG-200-10
Minimum Order Quantity: 10pcs
Price: US $2 - 10 / meter
Packaging Details: One piece in poly bag, then woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Supply Ability: 15,000 meters per day
Get Best Price Contact Now
Material: PVC Coated Fiberglass Fabric Diameter: 200mm
Color: Grey Length: 10M
Temperature: -50 To 260℃ Duct: HAVC System
Highlight:

pvc woven fabric

,

heat resistant fiberglass

PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System

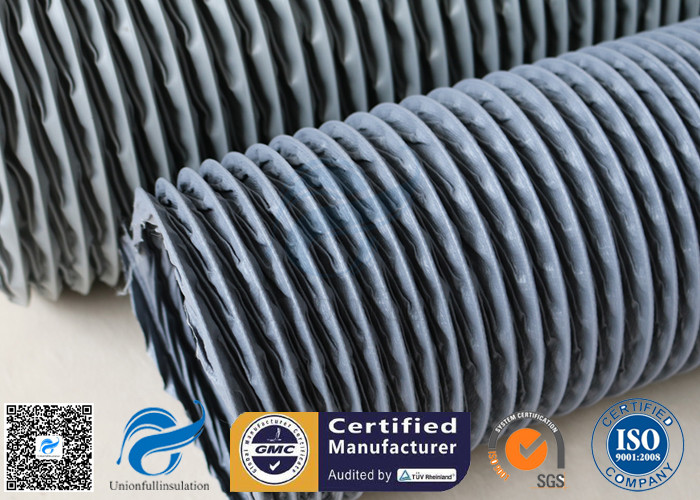

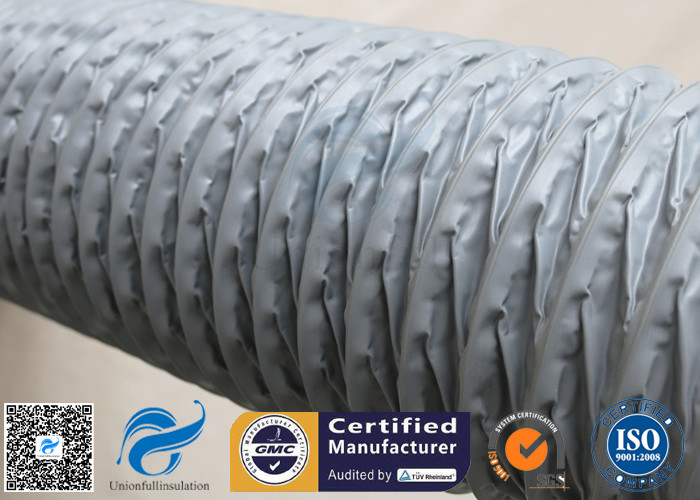

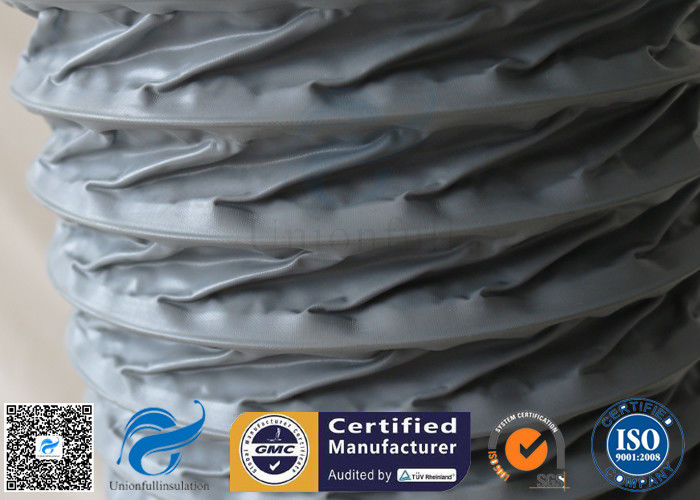

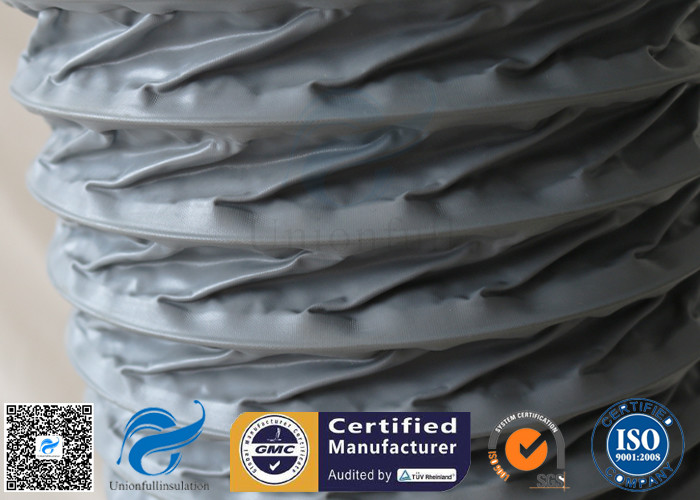

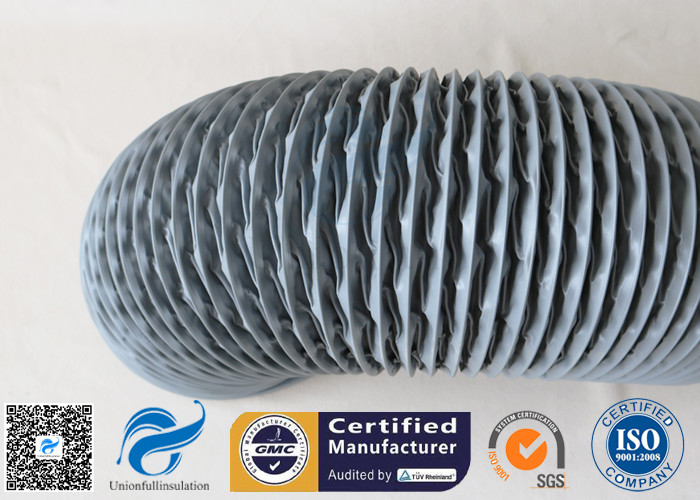

Materials of flexible glass fiber air ducting include PVC coated fiberglass cloth and spring steel wire. ​Fiber glass woven fabric coated with grey PVC is a material with flame&heat resistance, chemical corrosion resistance, waterproofing and abrasion resistance, electrical insulation. High temperature fiberglass air hose duct is widely used in engine exhaust in industrial fields.



Fiberglass air duct is an ideal and economical products for superior alternative in HAVC exhaust systems. Its fiberglass fabric material is durable and easy to fabricate. It is able to withstand continuous heat from -50 to 260℃. Basic fiberglass cloth can resist 550 degree centigrade. With fiberglass material, the finish air duct is able to be used for 5~10 years in normal working condition.



Specification





Items PVC Fiberglass Flexible Air Duct
Material

Fibre Glass Cloth

Spring Steel Wire
Coating PVC
Diameter 200mm
Color Grey
Standard Length 10m
Temperature

PVC Coating: below 260 ℃

Fiberglass ≤550℃





Features



  • Heat resistant, -50 to 260℃
  • Waterproof, oil resistant
  • Light weight but high strength
  • Firm clamping structure
  • Anti corrosion resistant
  • All parts are non combustible



Application



  • Conductor of hot and cold air
  • Granulate dryers in the plastics industry
  • Printing machines, blowers and compressors
  • Exhaust gas, engine, aircraft construction






PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System 0PVC Coated Fiberglass Fabric Flexible Air Ducts 200MM 10M Grey 260℃ HAVC System 1
