1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection

1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection
1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8784D200
Minimum Order Quantity: 500 Meters
Price: $4.47 - 5.10 / Square Meter
Packaging Details: 50 meters one roll in poly bag in carton
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60,000m2 one day
Get Best Price Contact Now
Basic Cloth: 850g/m2 Coating: Silicone, 100/100
Total Weight: 1050g Weave: Satin Weave
Width: 1000mm Fire Resistance: Fiberglass Cloth ≤ 550℃
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

1050gsm Silicone Coated Fiberglass Fabric For Railway Engine Sparks Protection



1050gsm silicone coated fiberglass fabric is basic 850g e-glass fiberglass fabric coated with grey silicone coating on two sides (100/100). Total weight of silicone fiberglass fabric is1050g/m2, 31oz/yd2. Thickness is 1mm. It is a high density and heavy duty thermal insulation materials.



Fiberglass fabric has high tensile strength and great fire resistance. Silicone coating adds electrical insulation and abrasion resistance to fiberglass cloth. The basic fiberglass fabric can withstand heat below 550℃ continuously and silicone coating is capble of resisting heat from -50 to 260℃.

Silicone coated fiberglass fabric is widely used for industrial application. It can be used to produce fire or welding blanket, auto heat insulation, fabric expansion joints and removable insulation jacket (with fiberglass needle mat). Also, it can be used as below heat insulation layer of railway engine, for sparks protection.



Specification:

Item Silicone Coated Fiberglass Fabric
Yarn E-glass
Weave Satin
Thread Count 18/13
Total Weight 1050g/m2
Thickness 1mm
Width 100cm
Temperature

Coating ≤ 260℃


Properties:


  • Fire resistance
  • Chemical resistance
  • Anti aging, weather
  • High strength
  • Electrical insulation
  • Sparks protective


Application:


  1. Fire or welding blanket, curtain
  2. Auto heat insulation
  3. Pipe protective warp
  4. Fabric expansion joint
  5. Removable thermal insulation jacket
  6. Railway engine heat resistant, sparks protection



Pictures:

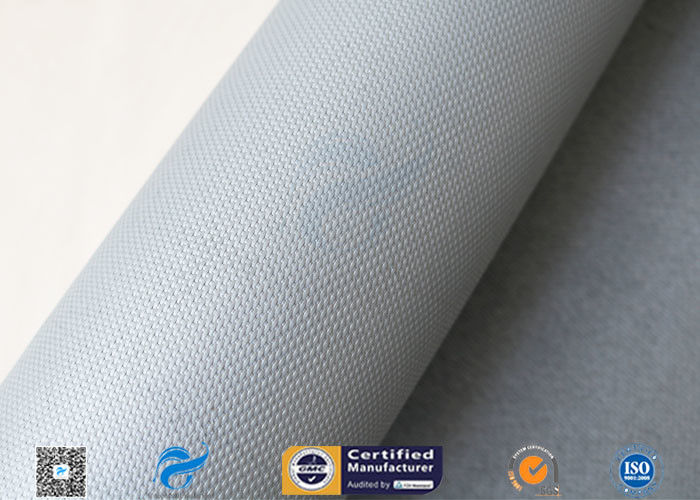

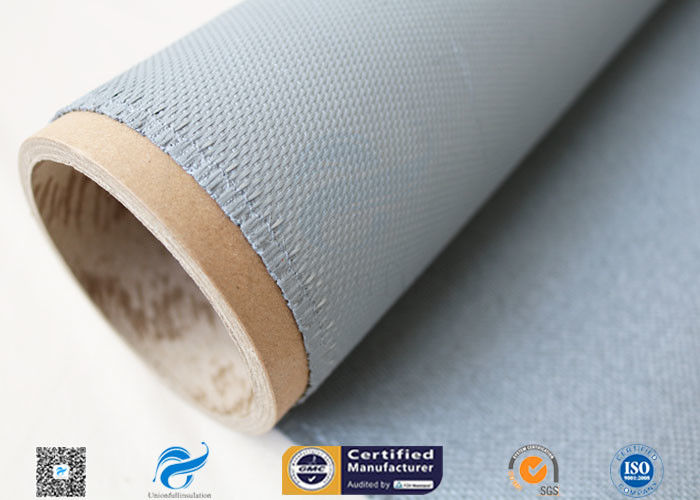

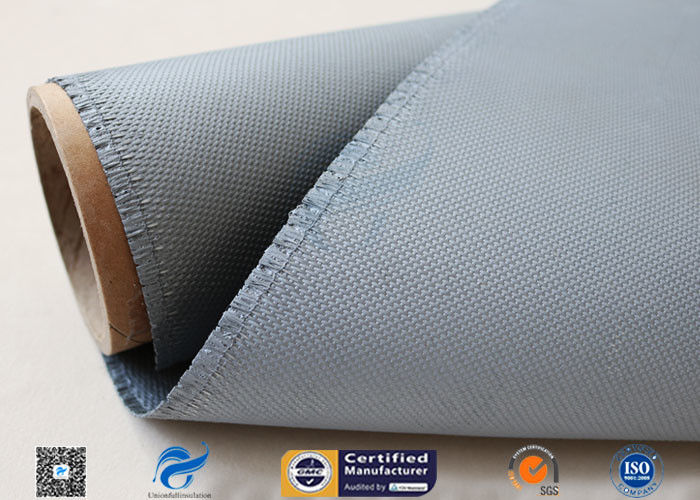

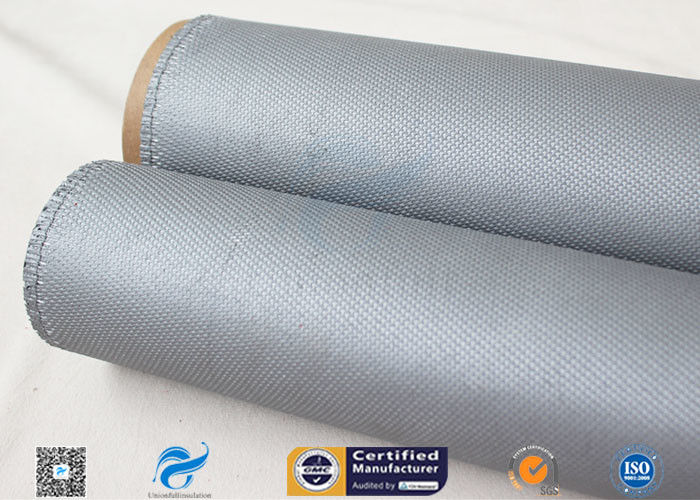

1050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 01050gsm silicone coated fiberglass cloth For Railway Engine Sparks Protection 1
