15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation

15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation
15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S100
Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters / roll
Delivery Time: 20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 m2 per day
Get Best Price Contact Now
Basic: Fiber Glass Coating: Black Silicone
Surface: Shiny Weight Per M2: 530g
Weave: Satin Temperature: Below 260℃
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

15.6oz Silicone Coated Fiberglass Fabric 0.5mm Engine Heat Insulation



Silicone Coated Fiberglass Fabric is made of e-glass fiberglass cloth which is able to withstand heat below 550°C. Then it is coated with 100g/m2 silicone on single side. Fiberglass fabric is a high strength,  and heat resistant material. Silicone coating is also fire resistant, and it is electrical insulation too. Silicone coated fiberglass fabric combines the properties and it is widely used in many industrial fields. Basic 430g/m2 fiberglass fabricThe is woven from e-glass yarns in satin weaving type.



It basic cloth--fiberglass fabric can resist heat below 550℃. The black silicone coating can resist a temperature from -50 to 260 ℃. Application of silicone coated fiberglass fabric is  removable thermal insulation jackets, electrical insulation covers, fire blankets, welding curtain and fabric expansion joints.


Specification:

Item Silicone Coated Fiberglass Fabric
Material 430g Fiber Glass Cloth
Weave Satin
Density, Ends/CM 20/11
Weight 530g/m2(430+100)
Coating Black silicone
Thickness 0.5mm
Width 100cm
Working Temperature

Silicone coating≤ 260℃


Features:



  1. Heat resistant
  2. Chemical acid resistant
  3. Stable physical properties
  4. High strength
  5. Electrical insulation
  6. Anti aging, abrasion resistant


Application:



  • Power generator electrical insulation blanket
  • Automotive part, engine insulation
  • Industries welding blanket, fire blanket
  • Fabric expansion joint

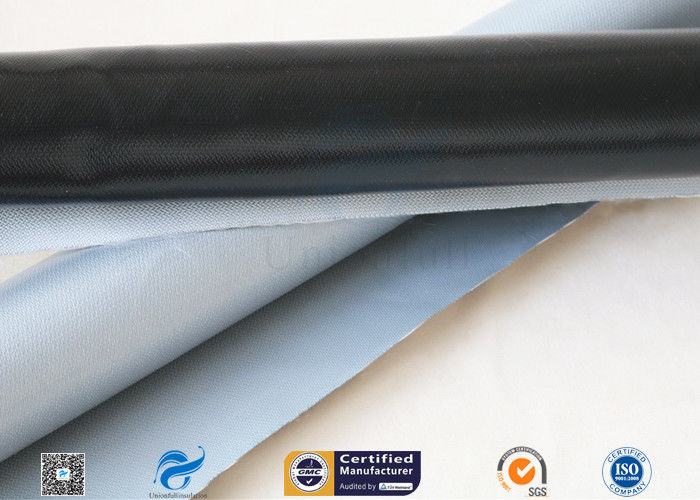

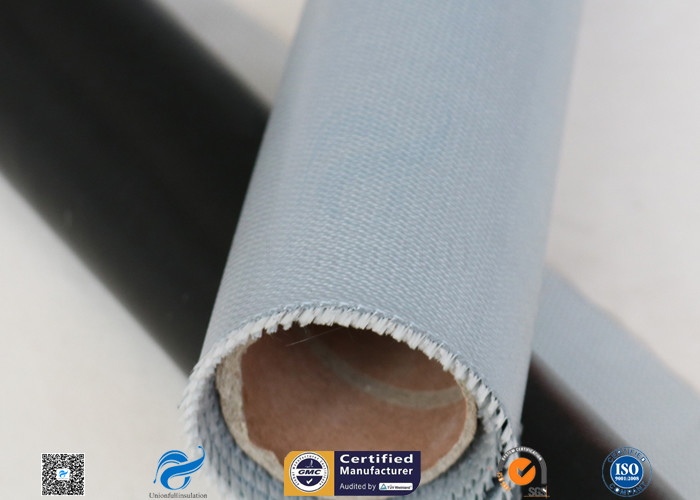

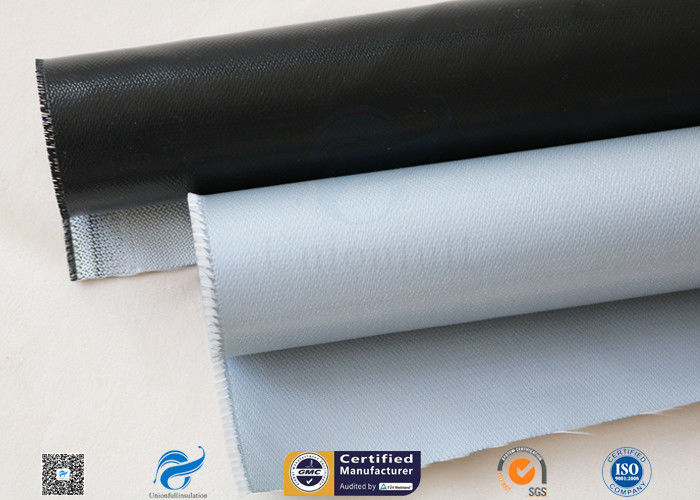

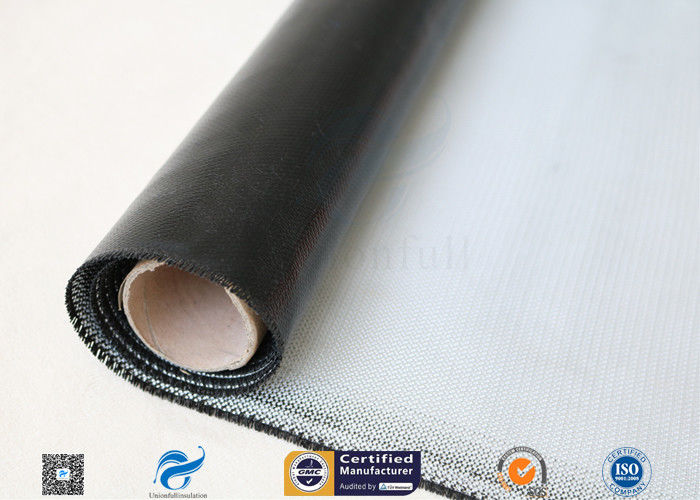

Picture:



15.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 015.6oz Black Silicone Coated Glass Cloth 0.5mm Engine Heat Insulation 1





Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
