Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation

Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation
Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8628D80
Minimum Order Quantity: 500 Meters
Price: $2.6-3.50/ Square Meter
Packaging Details: 50 meters per roll
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 square meters per day
Get Best Price Contact Now
Base Cloth: E-glass Fiber Surface: Grey Silicone
Total Thickness: 0.25mm Weight: 280g/m2
Width: 1000mm Weaving: Plain
Coating Side: 1 Or 2 Yarn: ECG75 1/0, ECG75 1/0
Highlight:

thermal insulation blankets

,

thermal insulation jackets

7628 0.25mm Grey Silicone Coated Fiberglass Fabric For Electrical Insulation



Silicone coated fiberglass cloth is woven from e-glass fiberglass yarns in plain weave, then heavily coated with grey silicone. The silicone coated fiberglass fabric is weighed at 360gsm and it is 0.25mm thick. It basic cloth is common style 7628 fiberglass fabric(200gsm, 0.2mm).


Silicone coated fiberglass fabric is high strength, heat resistant, abrasion resistant and resisting most acid. This durable fabric is used widely for thermal insualtion and electrical insulation application including industrial hoses and lines, fuel & oil pipe protection, wires/cables/tube for insulation purpose. Silicone coating is also ozone, UV and abrasion and it is with long working life.



Specification

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiberglass
Weaving Plain
Count 17.3/13
Total Weight 280g/m2
Thickness 0.25mm
Width 1000mm
Temperature

Silicone Coating below 260℃


Properties:


  • Anti most chemical agents
  • Coating abrasion resistance
  • Electric insulation
  • Durable, tear resistance
  • Operating temperature: -50 degree to 260 degree.



Application:


  1. Cold/Heat protective jacket
  2. Fire doors and fire curtains
  3. Welding blanket
  4. Fabric expansion joints
  5. Electrical insulation cover material

Pictures:

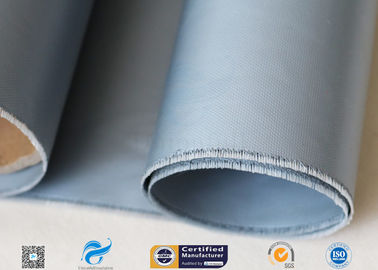

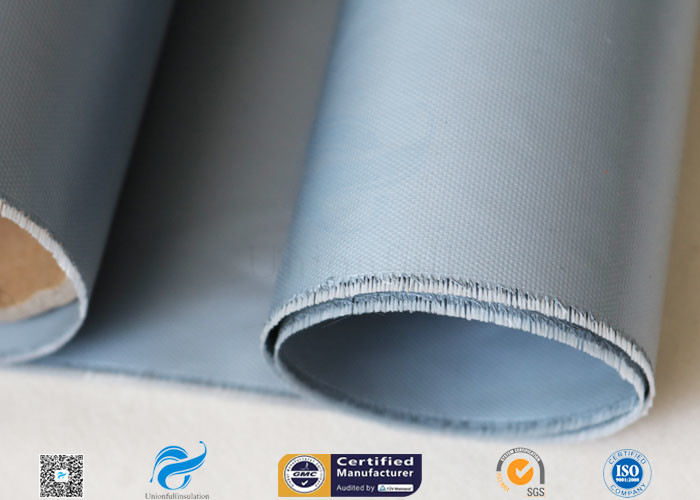

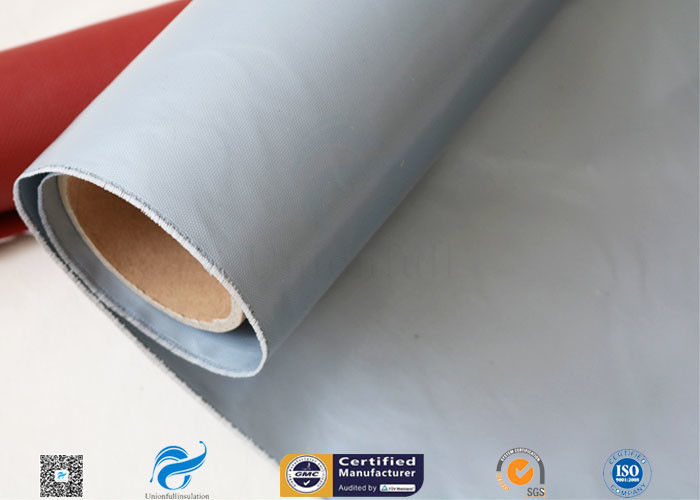

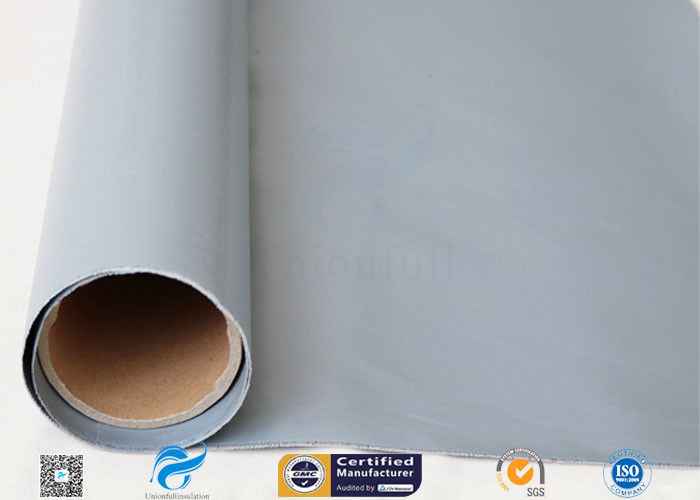

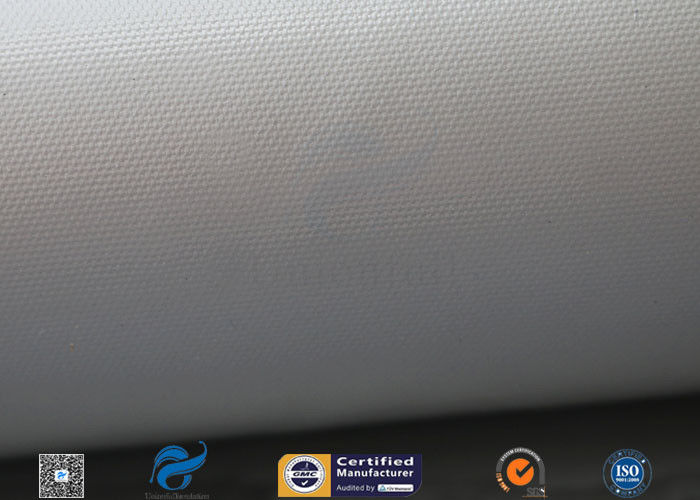

Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation 0Grey Silicone Coated Fiberglass Fabric 7628 0.25mm For Electrical Insulation 1





Tag:

thermal insulation jackets,

thermal insulation blankets,

thermal insulation covers
